As-Built Documentation Services

Precise existing-conditions documentation to support your design process

Packages

*All packages include digital exterior and interior reference photos

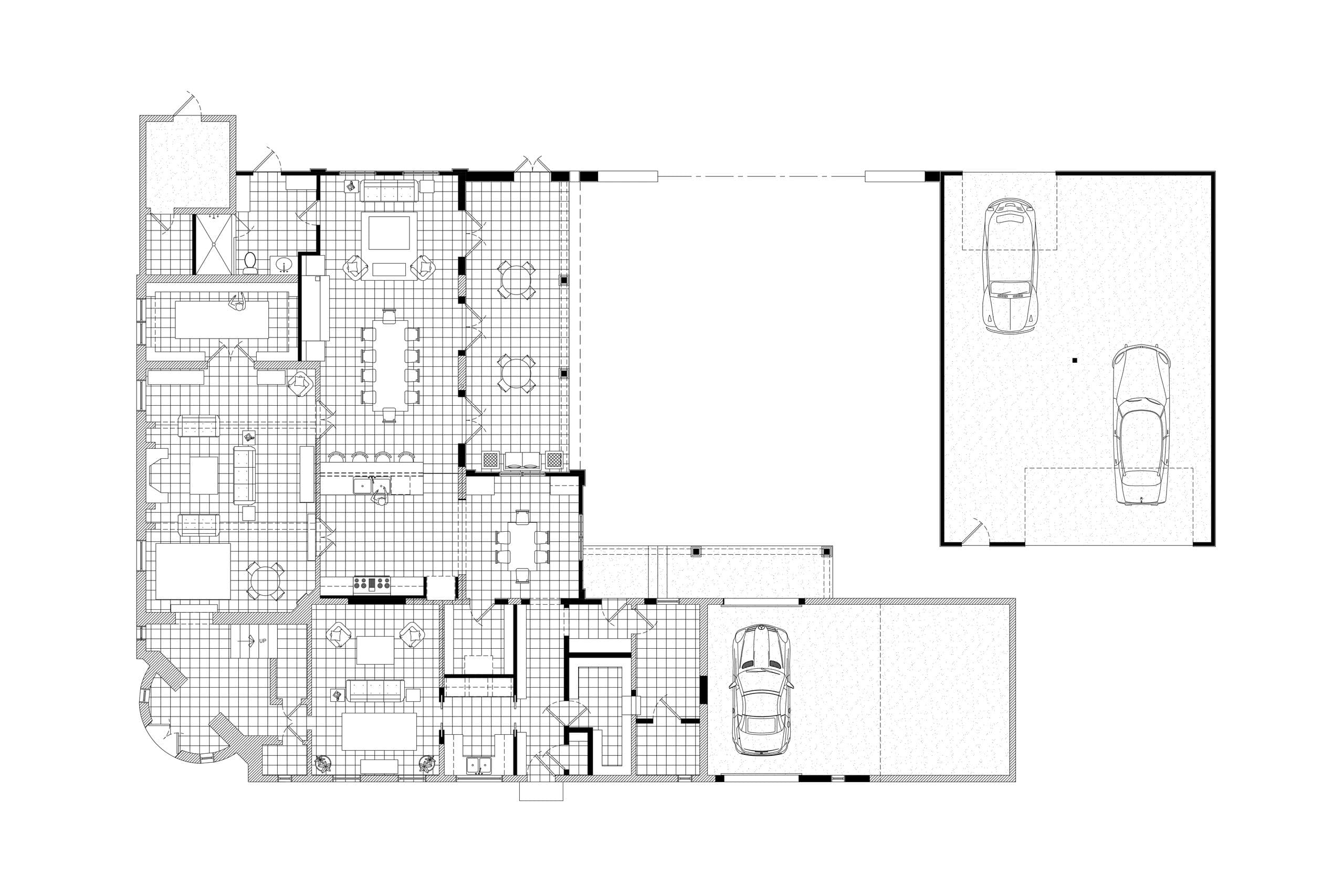

Floor Plan Only Package

Dimensioned floor plans documenting all walls according to their finished thickness, all changes in floor height, floor finishes, steps and staircases, porches with associated structure, cased openings with header heights, doors with swing and size, windows with size and header heights, ceiling heights, and all plumbing fixture locations.

*Priced per square foot

View Examples

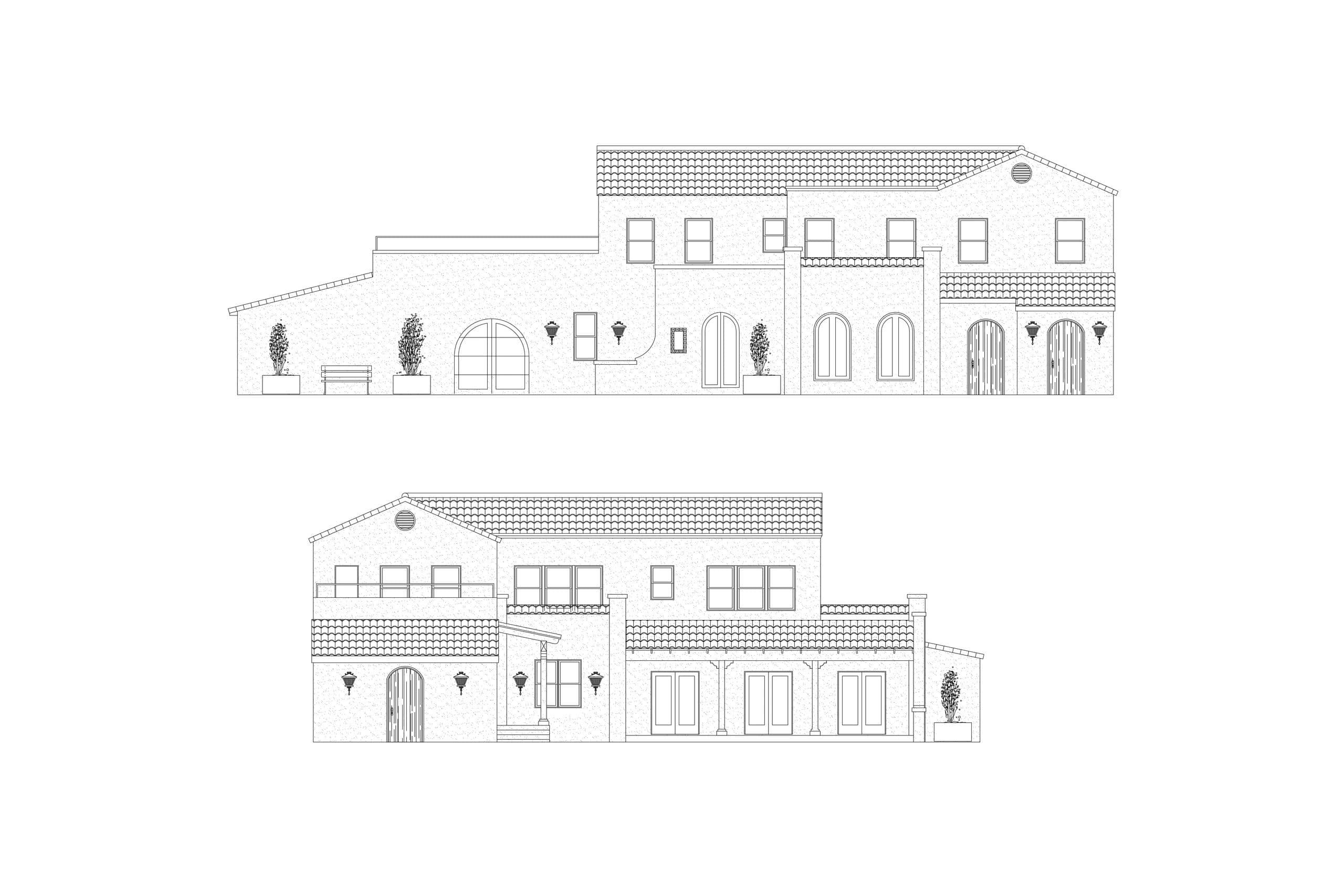

Typical Package

Everything in the Floor Plan Only Package, plus exterior elevations documenting all major exterior walls with finishes and offsets, visible windows and doors, porches, roof pitch and material finish, plate heights, and grade lines — as well as a roof plan showing boundaries to the edge of eave, exterior wall outline, pitch, and material finish.

View Examples

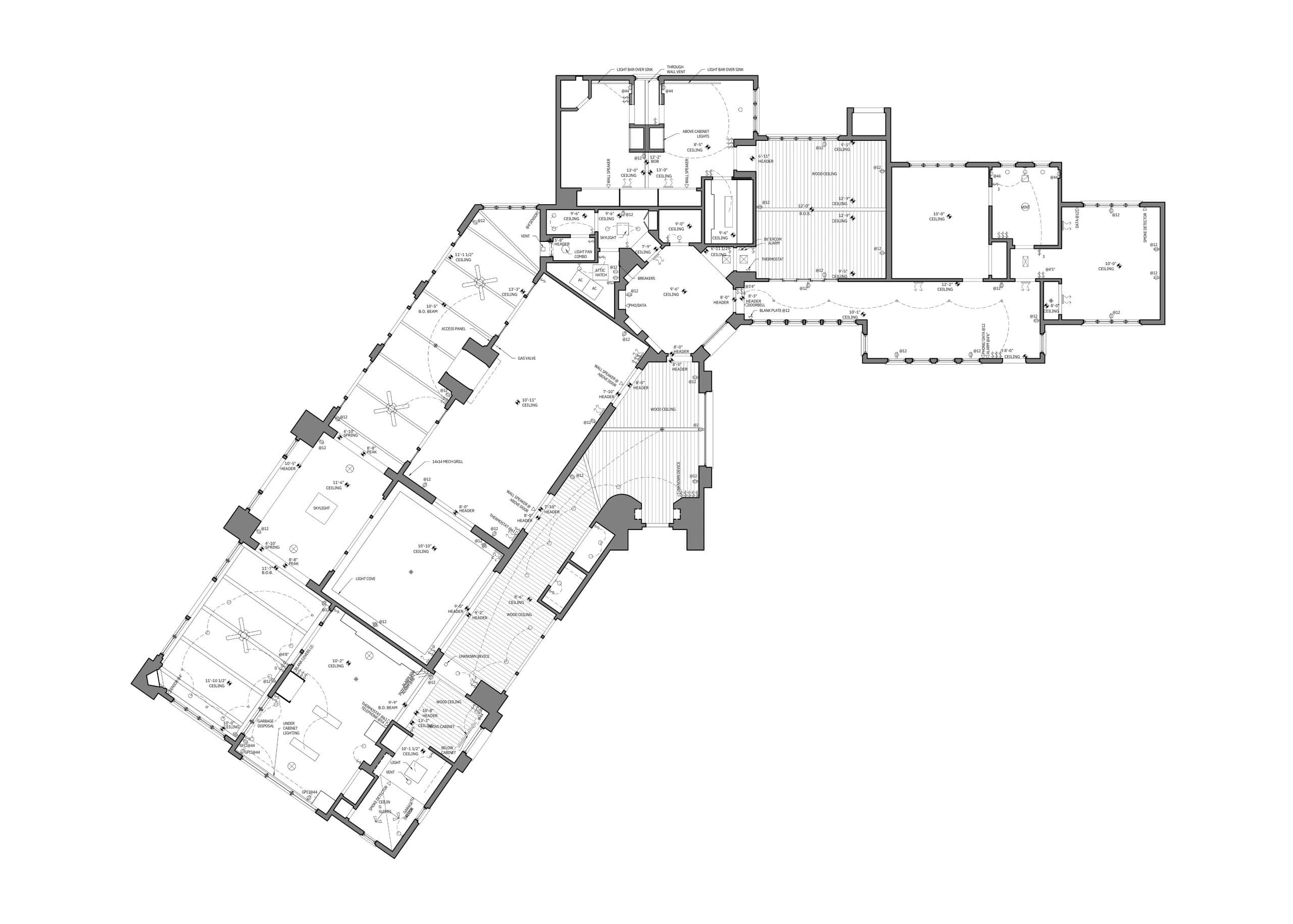

Full Package

Everything in the Typical Package, plus reflected ceiling plans and electrical plans documenting all ceiling conditions, lights and their associated switches, fans, plugs, AC grilles, and any other measurable items visible from below.

View Examples

Additional Drawings

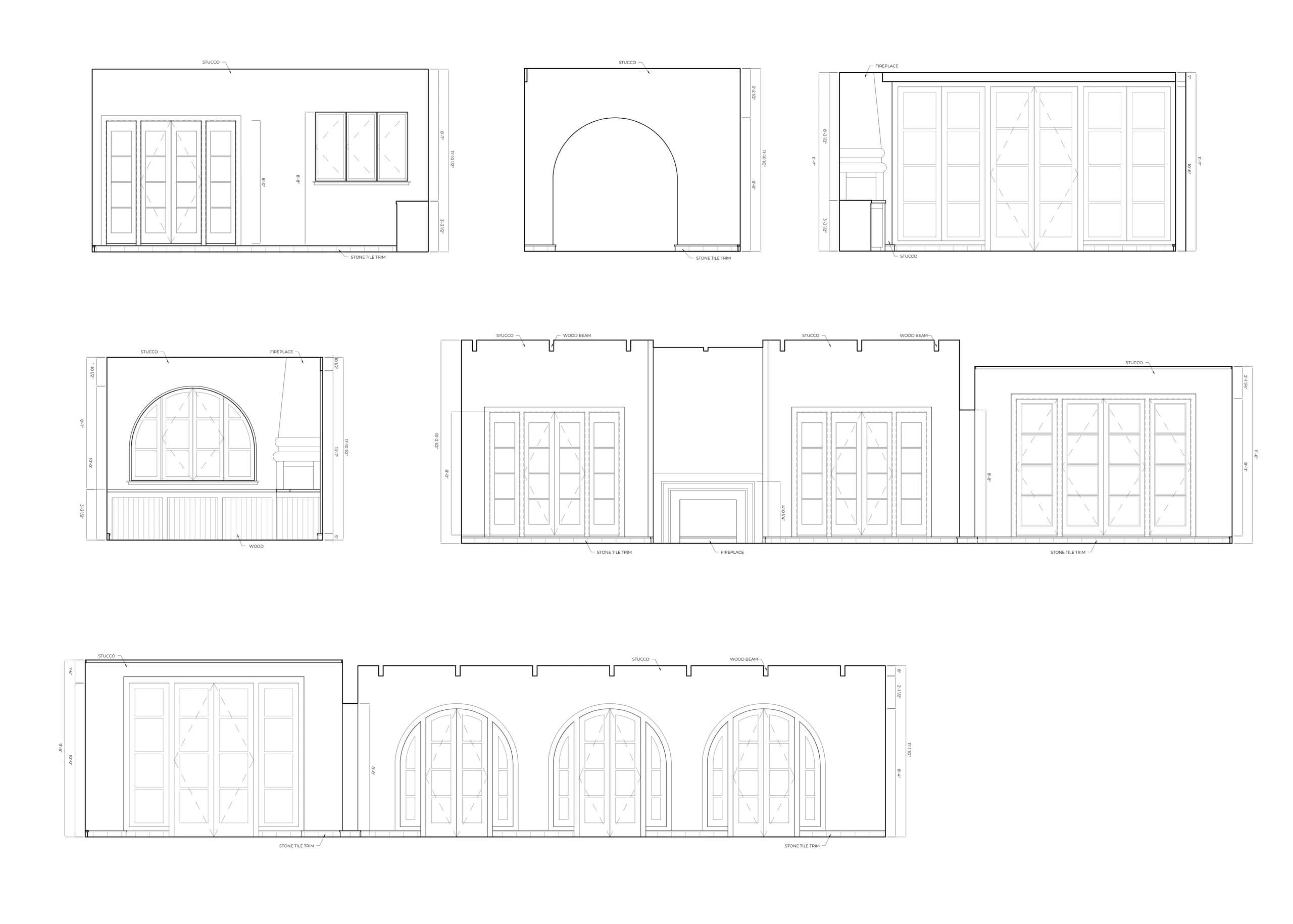

Interior Elevations

Scaled interior elevations capturing wall surfaces, doors, windows, cabinetry, built-in fixtures, and shelving.

How It Works

A streamlined process designed to keep your project on schedule

Scope the Project

Share your project details and we’ll provide a clear, no-obligation quote tailored to your documentation needs.

Field Documentation

Our experienced team visits the site to measure, photograph, and thoroughly document existing conditions.

Deliver Drawings

Receive polished as-built drawings delivered digitally, ready to serve as the base for your design documents.

Start Your Next Project with Confidence

Get accurate as-built documentation so your team can design from a reliable baseline. Reach out for a complimentary project quote.
